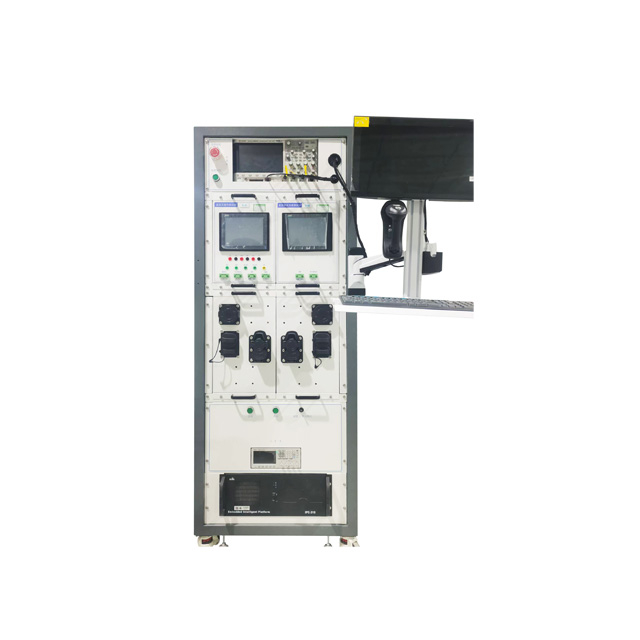

This device has been put into use in major testing institutions in China, with optional voltage of 1000V/1500V and current of 600A/800A/1000A. 2. It automatically collects data, captures waveforms, and determines results, and can be tested with one click or individually to generate test reports.
DC vehicle simulator | |
Name | National standard 32A/European standard 32A/American standard 32A/48A/80A |
Test voltage | ≤1% |
Test current | ≤1% |
Current measurement resolution | ≤1% |
Accuracy of current measurement | Error<2% |
Voltage measurement accuracy | Level 0.5 |
Simulation range of battery voltage | 220VAC+15% |
Battery voltage simulation resolution | Single phase 220VAC/Three phase 380VAC |
R3/R4/R4/R6 | Supports maximum three-phase |
R3/R4/R4/R6 | 50KWDxWxH=700x700x1850mm |
*1. Higher precision can be selected, and 2. When selecting measuring equipment, the upper computer software uses the data from the measuring equipment | |
Insulation resistance simulator | |
Name | Technical Specifications |
Resistance range | 10k2~1000kΩ |
Can withstand DC voltage | 0V~1000V |
Resistance error | ≤+2% |
Short term load capacity | 10 times rated power for 5 seconds |
Resistance resolution | 5kΩ |
Insulation resistance simulator | |
Short circuit device | Technical Specifications |
Name | 10k2~1000kΩ |
Short circuit capacity | 0V~1000V |
≤+2% | |
Test cabinet | Technical Specifications |
name | Above 2000V |
Voltage-resistant insulation | Single phase 220VAC+15% |
Working power supply | -20°~ 45° |
Operating temperature | indoor |
Using environmental dimensions | DxWxH=700x700x1850mm |
Measuring equipment | ||
Name | Technical Specifications | |
Accuracy class | Level 0.2 | 0.05 level |
Voltage accuracy | 0.1% | 0.05% |
Current accuracy | 0.1% | 0.05% |
Electric energy accuracy | 0.2% | 0.05% |
Harmonic measurement | - | 2-50 times |
Power factor measurement | - | Have |
