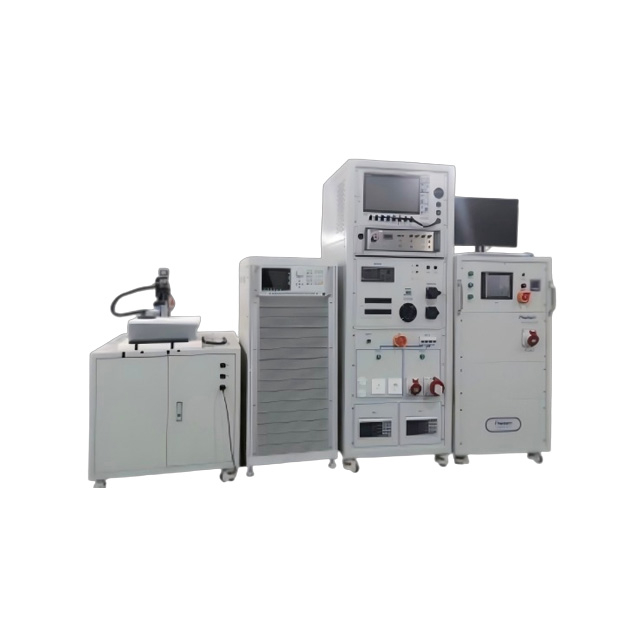

After market inspection: this equipment has been put into use in multiple testing institutions
Easy to use: automatic data collection, automatic waveform capture, and result judgment, can be tested with one click or single item testing, test item testing can be configured and automatically generate test reports
AC programmable power supply | |
Name | Technical Specifications |
Input voltage | 380VAC+15% three-phase four wire |
Output voltage | Phase voltage 0~300VAC |
Maximum output power | 30KVA |
Frequency | 45~65HZ |
Work mode | National standard/European standard/American standard power grid system |
Oscilloscope | |
Name | Technical Specifications |
Bandwidth | 70M/100M/200MHz optional |
Sampling rate | 2G Sa/S |
Programmable resistor load | |
Name | Technical Specifications |
Input voltage | Three phase, phase voltage 50~300VAC |
Input current | Three phase 0~40A/56A/100A optional |
Current resolution | 0.1A |
Work mode | Constant resistance/constant current/constant power |
Function | Three phase independent adjustable, three-phase balanced/unbalanced |
Leakage tester | |
Name | Technical Specifications |
Leakage type | AC、A、A+6、B |
Maximum leakage current | 500mA |
Current resolution | 0.1mA |
Temporal resolution | 0.1mS |
Measurement accuracy | ≤1% |
Test cabinet | |
Name | Technical Specifications |
Working Voltage | 220VAC+15% |
Power supply interface | Industrial socket: three-phase 32A |
National standard single-phase 16A socket; | |
American standard NEMA14-50R socket; | |
EU/Germany single-phase 16A socket; | |
Charging gun socket | National standard three-phase 32A |
European standard three-phase 32A | |
American standard 32A/80A optional | |
Size | DxWxH=700x700x1850mm |
