Exchange Pile Production Line Testing Bench

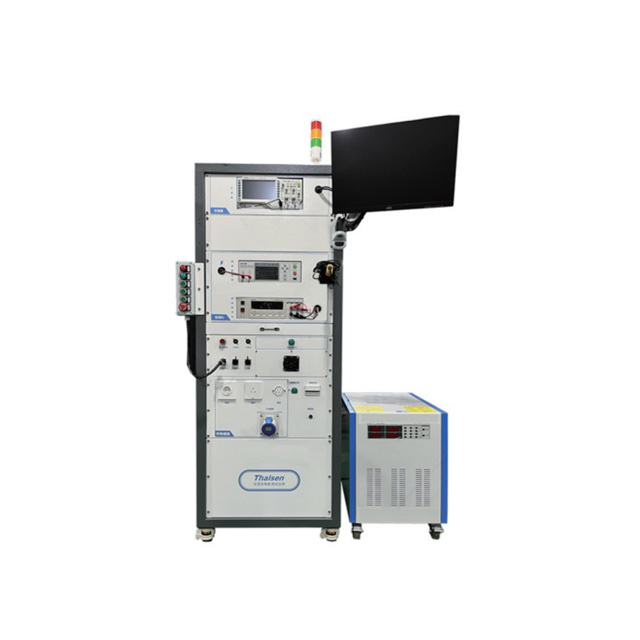

AC Charging Pile Production Line Testing Bench

This series of products is used for factory testing of charging piles, which can be automated and includes all factory testing items for AC charging piles. It is suitable for single-phase and three-phase AC piles, modes 2 and 3, and supports national, European, and American standards.

Availability:

Quantity:



Inquire Add to Basket

The test items can be freely combined to meet the 3C factory audit (August 26 is the deadline for the implementation of the 3C policy for domestic charging piles), and the test data can be saved and generate test reports, export production data, etc.

Name	Technical Specifications
Charging port	National standard 32A/European standard 32A/American standard 32A/48A/80A
CP amplitude measurement accuracy	≤1%
CP frequency measurement accuracy	≤1%
CP duty cycle measurement accuracy	≤1%
CC resistor	Error<2%
Voltage/current/power/electricity measurement accuracy	Level 0.5
Test the power supply voltage of the cabinet	220VAC+15%
Programmable power supply voltage	Single phase 220VAC/Three phase 380VAC
External expansion load	Supports maximum three-phase
Size	50KWDxWxH=700x700x1850mm
