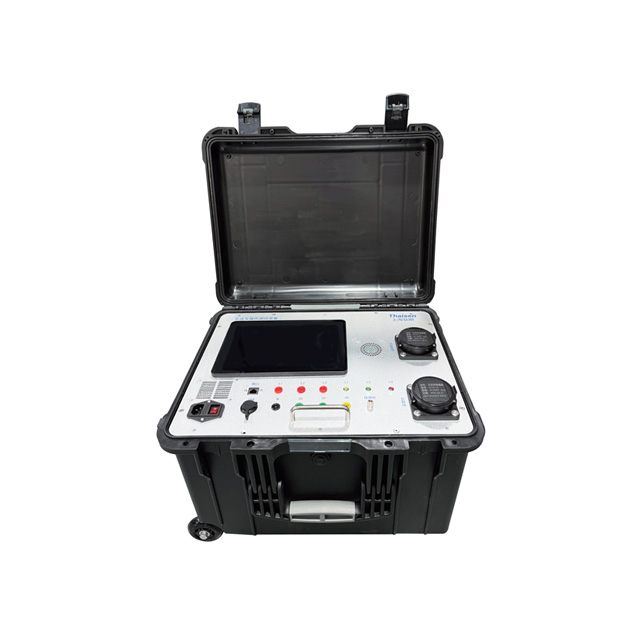

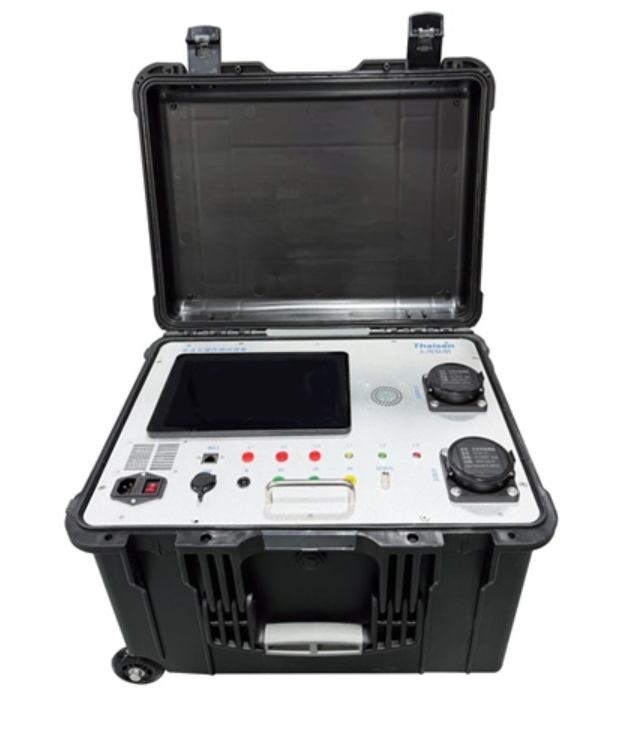

The Portable Communication Interoperability Testing System is a suitcase-type testing device designed for interoperability verification of AC charging stations. As part of the intelligent equipment product line for charging infrastructure, it supports both single-phase and three-phase AC charging stations, with optional metering functions to meet diversified testing requirements. Suitable for field testing, factory inspection and third-party compliance verification, this system addresses common pain points for commercial users, such as inconvenient on-site testing, low manual testing efficiency, and complicated report generation. Its portable design allows flexible deployment across different work scenarios, reducing the time and labor costs of charging infrastructure testing.
This testing system supports fully automated testing workflows. Users can initiate full testing procedures with one click, and the system will automatically execute test items, judge test results, and generate complete test reports without manual data sorting. For targeted verification needs, the system also supports single-item testing mode, allowing users to focus on specific test points. This automated workflow reduces manual operation steps, lowers the risk of human error, and shortens the testing cycle for commercial procurement and operation teams.
Equipped with a built-in 4-channel oscilloscope, the system can automatically collect testing data and capture waveform signals during the communication process. It performs real-time data analysis and result judgment based on preset standards, eliminating the need for additional oscilloscope equipment in field testing. This integrated design simplifies the testing equipment configuration for industrial clients, making on-site testing more streamlined and efficient.
All test item parameters are configurable, allowing users to adjust testing settings according to different project standards and on-site conditions. Whether for routine maintenance inspection, factory delivery testing or project acceptance, the system can adapt to corresponding testing requirements through parameter configuration. This flexibility makes the device applicable to multiple links of charging station operation and management, covering the full life cycle of charging infrastructure.
Item | Specification |
Charging port | National standard/European standard/American standard 32A |
Load voltage | Phase voltage 0-300VAC, R2/R3 resistance value 200 Ω -10k Ω continuously adjustable |
Measurement accuracy | CP amplitude/frequency/duty cycle ≤ 1%, voltage/current/power/electricity can be selected as 0.5/0.2 levels |
Size | 520 × 415 × 225mm (accuracy level 0.5)/664 × 500 × 370mm (accuracy level 0.05) |
This testing system supports mainstream charging standards across multiple regions, covering national, European and American standards, which helps business buyers adapt to different regional regulatory requirements. The applicable standards include GB/T 18487.1-2015/2023, GB/T 34657.1-2017, IEC 61851-1, SAE J1772 and JJG 1148-2022. For enterprises deploying charging infrastructure in different markets, this single device can complete interoperability testing of charging stations with different standards, eliminating the need to purchase multiple sets of testing equipment for different regions. This cross-standard compatibility reduces equipment procurement costs for global commercial operations.
This portable testing system is suitable for multiple commercial application scenarios, covering the full chain of charging equipment production, operation and testing. For charging equipment manufacturers, the system can be used for factory delivery inspection of AC charging stations, verifying communication interoperability before products leave the factory to reduce after-sales problems. For charging station operators and maintenance service providers, the portable suitcase design facilitates on-site fault diagnosis and regular maintenance testing, improving the efficiency of on-site service. For third-party testing institutions and quality inspection departments, the system supports standard-compliant testing and automatic report generation, meeting the requirements of compliance verification and project acceptance. All scenarios are designed to match the actual work needs of commercial users, providing stable testing support for charging infrastructure operation.
This interoperability testing system supports national, European and American standards, applicable to both single-phase and three-phase AC charging stations. The specific compliant standards include GB/T 18487.1-2015/2023, GB/T 34657.1-2017, IEC 61851-1, SAE J1772 and JJG 1148-2022.
Yes, the system supports both one-click full testing and single-item testing modes. All test item parameters are configurable, and users can adjust corresponding settings based on specific project standards and testing objectives.
The metering function is an optional configuration. For CP amplitude, frequency and duty cycle testing, the measurement accuracy is ≤ 1%. For voltage, current, power and electricity measurement, users can choose 0.5 level or 0.2 level accuracy. Devices with different accuracy grades correspond to different dimensions.
The Portable Communication Interoperability Testing System integrates testing, data acquisition and report generation functions, with a portable design and multi-standard compatibility. It provides a feasible testing solution for charging equipment manufacturers, operation service providers and third-party testing institutions. For commercial procurement teams with specific configuration requirements, the optional metering function and adjustable parameters can further match personalized testing needs. The device follows mainstream international and regional testing standards, supporting stable interoperability verification for AC charging stations in various application scenarios.
