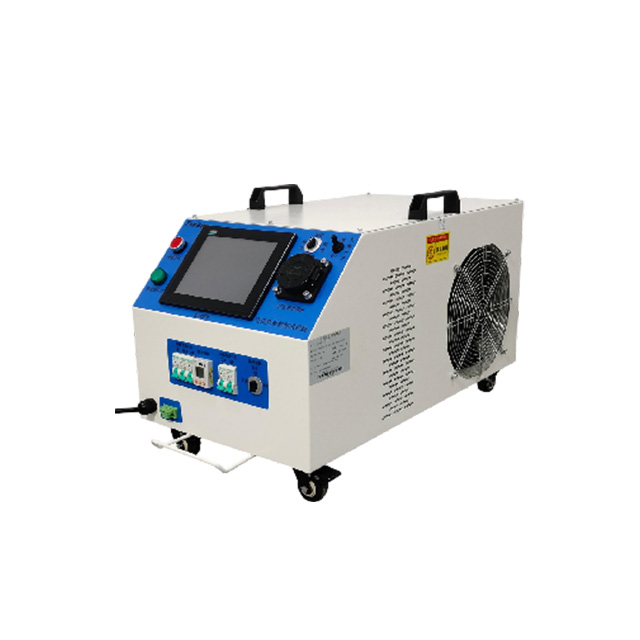

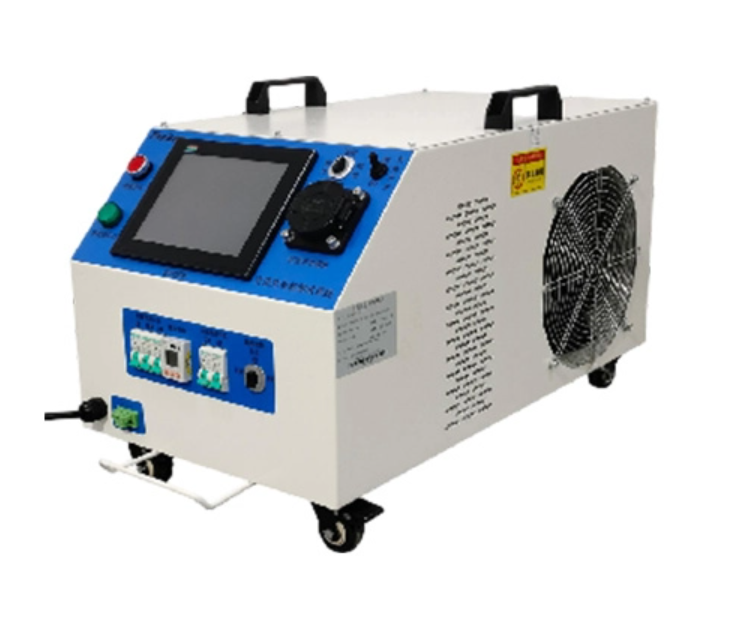

The Single Phase AC Charging Test System (National, European, and American Standards) is a professional testing device under the intelligent equipment division of our company, designed for AC charging pile product development, production verification and quality management. As part of our charging infrastructure testing solution portfolio, this system works in coordination with products from our smart charging division, including charging pile motherboards and operation platforms, to deliver end-to-end support for commercial users across the new energy charging sector. It supports testing under three mainstream regional standards, and adapts to single-phase mode 2 and mode 3 AC pile testing procedures, covering multiple links from R&D to batch production.
This test system supports multiple simulation functions for daily testing and fault verification workflows. It can simulate gun insertion, CP disconnection, CP grounding, and AC leakage conditions, which helps engineering teams verify the response performance of charging piles under abnormal working states. The S2 switch on the device supports both manual control and automatic control modes, allowing operators to adjust test procedures according to different test schemes and workflow requirements. This flexible control design adapts to both routine batch testing and targeted fault analysis scenarios in industrial applications.
The system integrates multiple measurement modules to cover core electrical and signal parameters of AC charging piles. It can measure CP amplitude, frequency and duty cycle, as well as CC resistance values, to verify the signal compliance of charging pile control circuits. It also supports measurement of charging voltage, current, power and battery level parameters, providing complete data support for charging performance evaluation. All measurement functions are integrated into a single device, reducing the need for additional testing instruments in commercial operation scenarios.
The device is equipped with a built-in load with adjustable gears, which eliminates the need for external load equipment during routine testing. The adjustable load configuration allows operators to simulate overcurrent testing conditions, verifying the overload protection performance of charging piles. This integrated design simplifies the test setup process, reduces the space occupied by test equipment, and improves testing efficiency for production lines and R&D laboratories.
This single-phase AC charging test system complies with multiple national and international charging standards, covering mainstream markets in China, Europe and North America. The supported standards include:
Chinese standards: GB/T 18487.1-2015/2023, GB/T 34657.1-2017, NB/T 33002-2018, NB/T 33008.2-2018
International and regional standards: IEC 61851-1:2017, IEC 61851-22, IEC 62955:2018, SAE J1772, UL 2231-1/2, UL 2594
For business buyers that produce charging piles for export or multi-market deployment, this multi-standard compatibility allows one device to cover product testing for different target markets, reducing repeated equipment investment and simplifying quality management systems.
Item | Parameter |
Charging port | National standard/European standard/American standard 32A |
Measurement accuracy | CP amplitude ≤ 2%, frequency/duty cycle ≤ 1%, CC resistance 0-4K Ω error<2%, voltage/current/power/electricity level 1.0 |
Built in load/power supply | Single phase 7KW (national standard/European standard/American standard), 220VAC ± 15% |
Size | 720 × 450 × 350mm (National Standard/European Standard/American Standard) |
This test system is suitable for multiple links in the charging pile industry chain, serving industrial clients including charging pile manufacturers, testing institutions and new energy vehicle component suppliers. In R&D and debugging stages, engineering teams can use the device to verify circuit design, control logic and standard compliance of AC charging piles, shortening the product development cycle and reducing repeated prototype testing costs. In offline production testing links, quality inspection departments can use the system to conduct batch functional verification of finished products, ensuring that each charging pile meets specified performance requirements before delivery. The device also supports aging testing of charging pile products, evaluating long-term working stability under continuous power-on conditions. For enterprises with both R&D and production demands, this system covers full-cycle testing requirements, and can be used together with smart charging division products such as charging pile motherboards and management platforms to build a complete product development and verification system.
This test system supports three mainstream single-phase AC charging standards: Chinese national standard, European standard and American standard. It is compatible with single-phase mode 2 and mode 3 AC pile testing, and complies with a full set of corresponding national and international standard specifications.
Yes, this test system has a built-in single-phase 7KW load with adjustable gears. It can simulate conventional charging loads and overcurrent test conditions without additional external load equipment, supporting routine performance testing and fault simulation testing.
For CP amplitude measurement, the accuracy is ≤ 2%; for frequency and duty cycle measurement, the accuracy is ≤ 1%. For CC resistance measurement within 0-4K Ω, the error is less than 2%. For voltage, current, power and electricity level measurement, the accuracy grade is 1.0.
For commercial procurement teams looking for standardized charging pile testing solutions, this system provides stable and repeatable test capabilities for daily production and R&D scenarios. We also support customized configuration adjustments according to specific testing requirements, and can provide matching solutions combined with our smart charging division products. For detailed quotation and solution consultation, you can contact our professional team for further communication.
