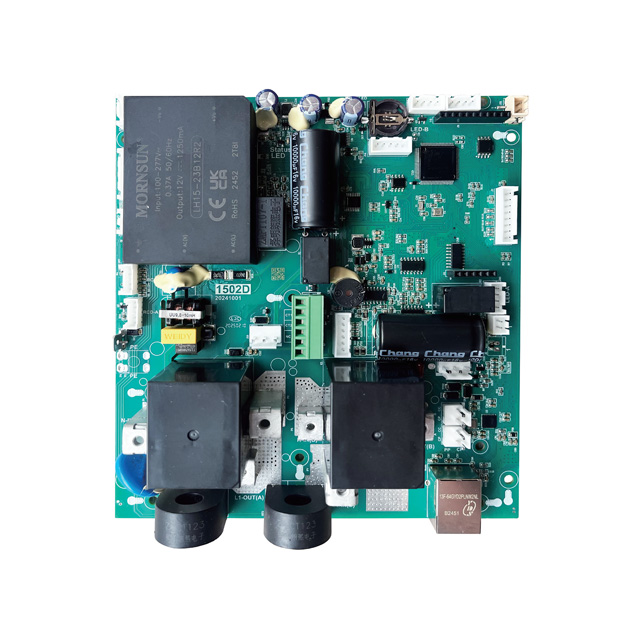

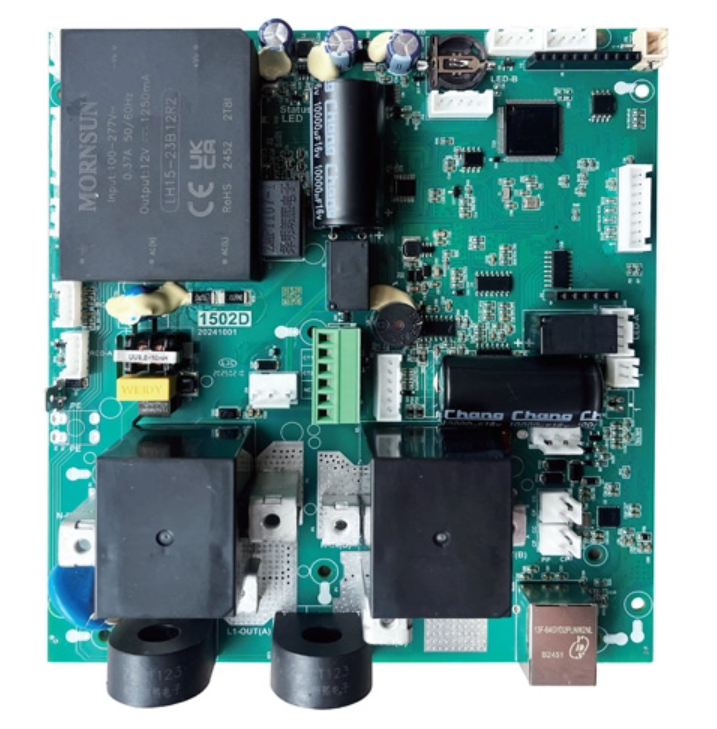

The V15 European standard dual gun series AC charging controller serves as a charging management device developed for the European market. This product supports dual-gun coordinated operation, multiple networking methods, and payment functions, addressing charging requirements across commercial, public, and residential locations. The controller complies with European electrical safety standards, incorporates control strategies and hardware design, and delivers charging solutions with scalability. This product falls under the Smart Charging Division portfolio, which includes charging pile motherboards, management platforms, and low-voltage/high-altitude charging solutions.
This controller supports OCPP 1.6J and OCPP 2.0 protocols, enabling compatibility with mainstream charging operation platforms across Europe. The system facilitates remote configuration, fault diagnosis, and data reporting functions. Communication options include 4G, Ethernet, and WiFi connectivity, accommodating various network environments. Integration with IoT platforms allows remote monitoring and device linkage capabilities.
The V15 controller supports RFID card swipe activation, working with mainstream charging card types available on the market. Additional start options include Bluetooth activation and QR code scanning, selectable based on project requirements. Display configurations include LED or LCD options. The system supports both offline and online operation modes: offline piles support card swipe start/stop functions, while networked piles enable card swipe and scan code operations with cloud-based billing. Orderly charging functionality is available as an optional feature.
The controller incorporates multiple layers of protection, including external A+DC6 earth leakage protection, grounding protection, overvoltage protection, overcurrent protection, surge protection, bonding protection, and over-temperature protection. The system meets established electrical safety requirements for commercial installations.
Category | Parameter | Value |
Basic Parameters | Maximum power | 14kW |
Applicable scenarios | Public operation / private charging / offline billing | |
Communication Input | Input voltage | 230V+20% VAC |
Input frequency | 45-65 Hz | |
Number of input phases | Single phase, 1P+N+PE | |
Communication Output | Output voltage | Single/Three phase 230V ± 20% VAC |
Output current | 32A | |
Power Consumption | Standby power consumption | Offline ≤ 5W; Online ≤ 10W |
Electricity Metering | Measurement accuracy | Level 2.0 |
Interactive Features | Network access | 4G / WIFI / ETH |
Swipe to start | Optional | |
Bluetooth start | Optional | |
Display mode | LED (optional), LCD (optional) | |
System Security | Earth leakage protection | External A+DC6 |
Grounding protection | Satisfy | |
Safety protection | Overvoltage/overcurrent protection, surge protection, grounding protection, bonding protection, over temperature protection | |
Appearance Structure | Overall dimensions | 155mm × 147mm, Aperture of 03.2mm |
Environmental Indicators | Operating Temperature | -30°C - +55°C |
Storage temperature | -40°C - +85°C | |
Ambient humidity | ≤ 95% without condensation | |
Applicable locations | Outdoor / Indoor |
Commercial parking lots: The dual-gun scheduling capability supports time-of-use billing and third-party payment integration for commercial procurement operations.
Highway service stations: 4G networking maintains communication stability in remote locations, while offline billing addresses signal coverage gaps for business operations.
Residential communities: Card authentication combined with platform linkage enables private charging pile sharing management for property operations.
Fleet operations centers: OCPP protocol support enables multi-platform access and unified management of charging pile clusters for industrial applications.
Selection depends on specific location requirements. For residential areas, hotels, and hospitality locations, AC charging stations represent a suitable choice without requiring charging modules, reducing station construction costs. For highway locations or areas with heavy vehicle traffic, DC charging stations provide faster charging speeds. Contact our team for customized solution recommendations based on your specific requirements.
The remote operation and maintenance management platform, included with all controller purchases, enables remote device upgrades, remote restarts, historical charging order queries, and battery report access. These functions support station operational efficiency for enterprise customers.
Refer to the product specification sheet in the Resource section for detailed information. You may also submit your contact information, and our technical team will develop a solution tailored to your project requirements.
Our company operates two divisions. The Smart Charging Division provides AC mode 2 controllers, AC mode 3 controllers, DC charging controllers, high-voltage DC insulation detection modules, diagnostic operation platforms, and application solutions across all international charging standards. The Intelligent Equipment Division offers AC/DC charging pile production lines, photovoltaic inverter energy storage testing equipment, AC/DC charging pile testing equipment, electric vehicle battery quality testing equipment, and connector testing benches. All equipment products adapt to national, European, American, and Japanese international standards.
