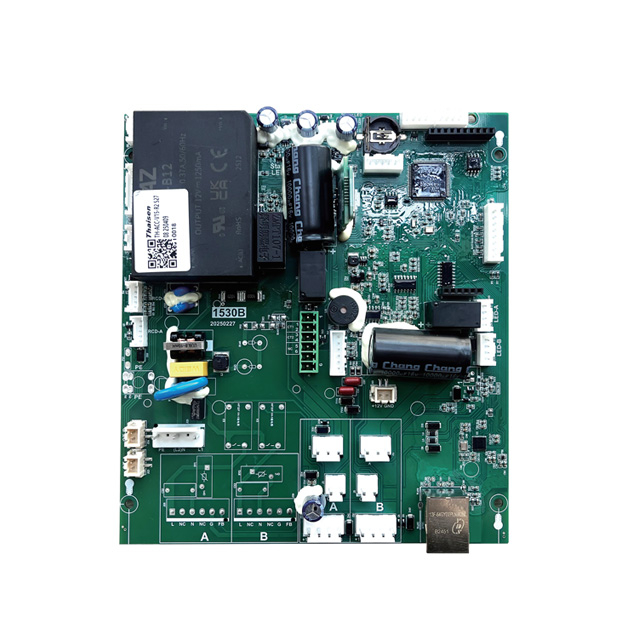

V16 AC Mode Three Controller (American Standard Dual Gun)

The V16 American standard dual gun AC controller is a charging management device designed for the North American market. It supports dual control modes of relays and AC contactors, enabling precise control of low-voltage and high-voltage circuits. The product complies with UL and FCC American standard certifications, and integrates flexible network communication and intelligent charging management functions, suitable for commercial, public and industrial charging scenarios. Backed by two business divisions covering smart charging systems and intelligent equipment manufacturing, the manufacturer provides end-to-end support from controller hardware to testing equipment and operation platforms, ensuring stable technical iteration and after-sales service for commercial procurement projects.

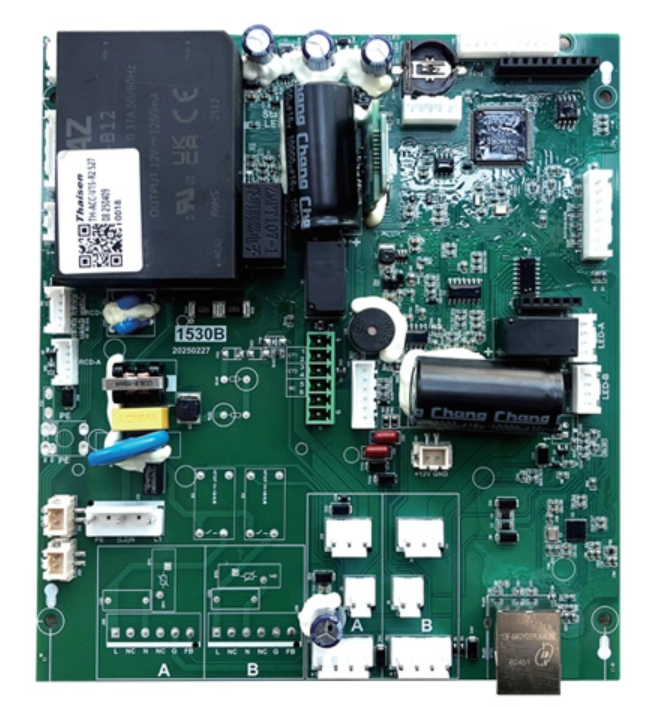

Core Features of V16 American Standard Charging Controller

Dual Control Schemes with Dynamic Power Allocation

The controller adopts a dual-control design to adapt to different budget and load requirements. The relay scheme supports low-cost deployment with a maximum output power of 7kW+7kW, equipped with dynamic power allocation function. The two guns can be adjusted independently, and total power is distributed on demand, making it suitable for sites with limited grid capacity. The AC contactor scheme adapts to high-load scenarios, supporting long-term continuous operation for industrial applications. Clients can select the appropriate scheme based on project scale and grid conditions.

Open Charging Protocol Compatibility

The controller is compatible with OCPP 1.6J and OCPP 2.0 charging protocols, enabling seamless integration with mainstream charging operation platforms in the market. The protocol support covers remote parameter configuration, real-time charging status monitoring, and fault diagnosis functions, allowing operators to manage multi-site devices in a unified manner. This design meets the management requirements of scaled commercial operations and reduces the difficulty of system docking for enterprise customers.

Remote Operation & Maintenance Capabilities

The controller supports OTA remote firmware upgrade, eliminating the need for on-site operation to complete function iteration and bug fixes. It has a built-in fault code self-diagnosis function that can locate faulty modules accurately, reducing on-site troubleshooting time. The matching remote operation and maintenance platform supports remote device restart, charging order query and operation data statistics, which helps improve the overall operation efficiency of charging stations and reduces labor costs for daily maintenance.

Independent Safety Protection Design

The circuit design follows UL certification standards, with independent isolation between the two gun circuits to eliminate cross-interference risks. It is equipped with multiple electrical protection mechanisms covering earth leakage, grounding, overvoltage, overcurrent, surge and relay adhesion conditions. The protection design adapts to both indoor and outdoor installation environments, meeting the safety compliance requirements of public and industrial charging facilities.

V16 AC Controller Technical Specifications

Application Scenarios for Commercial & Industrial Use

For commercial complexes, the controller supports time-of-use leasing and peak-valley electricity pricing strategies, and can be integrated with third-party payment systems to match the operation needs of commercial properties. For public charging stations, 4G network access ensures stable communication in remote areas, adapting to the deployment requirements of public charging networks. For logistics fleets, high-power output combined with OCPP protocol support helps optimize fleet charging scheduling and improve vehicle turnover efficiency. For industrial parks, the AC contactor scheme supports long-term high-load operation, adapting to harsh industrial environments and meeting the daily charging needs of park vehicles.

FAQ

What control schemes does the V16 dual gun AC controller support?

The V16 controller supports two control schemes. The relay scheme applies to low-cost deployment with a maximum output of 7kW+7kW and dynamic power allocation. The AC contactor scheme applies to high-load scenarios with long-term operation requirements. Clients can select the scheme based on project budget and grid capacity.

Which charging protocols is this controller compatible with?

This controller is compatible with OCPP 1.6J and OCPP 2.0 charging protocols, enabling integration with mainstream charging operation platforms. It supports remote configuration, real-time monitoring and fault diagnosis functions, suitable for scaled charging management in commercial operations.

What safety certifications and protections does the V16 controller have?

The product follows UL and FCC American standard certifications. It includes multiple protection mechanisms: earth leakage protection, grounding protection, overvoltage/overcurrent protection, surge protection and relay adhesion protection. The dual-gun independent isolation design eliminates cross-interference risks.

What networking methods are available for this charging controller?

The controller supports 4G, WiFi and Ethernet network access options. It also supports optional functions including orderly charging, swipe card start and Bluetooth start, with display modes of standard LED and optional LCD to match different deployment requirements.

For customized charging control solutions tailored to specific project requirements, clients can contact the technical team for detailed support and solution design.
