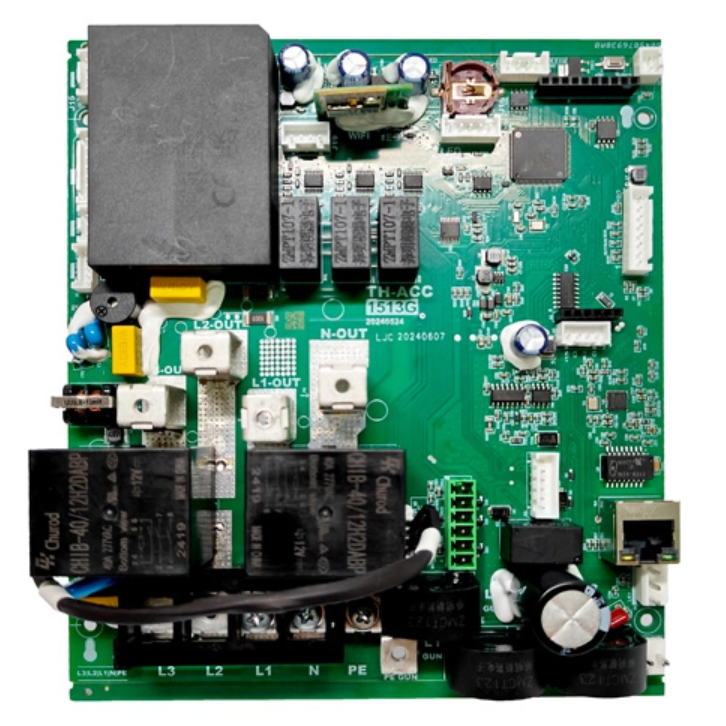

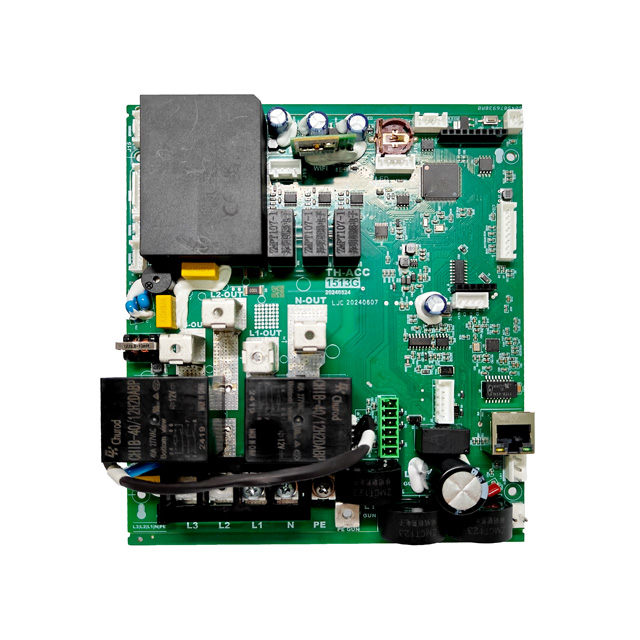

The V15 series AC Mode 3 controller is a single/three-phase compatible intelligent charging device built to European standard EN 61851. With a maximum output power of 22kW, it combines low-power adaptability and high-power charging capacity, designed for residential, commercial, and public charging scenarios across Europe. Integrating multi-mode networking, dynamic load balancing and multi-level security protection, it delivers efficient, flexible charging management solutions for industrial clients and commercial procurement projects.
The V15 series supports stepless power adjustment from single-phase 7kW to three-phase 22kW, compatible with mainstream electric vehicle models in the European market. Its intelligent derating function enables stable operation at a minimum current of 6A, suitable for deployment in areas with aging power grids without extra circuit expansion. This feature cuts upfront construction costs for commercial users and shortens project implementation cycles.
The controller adopts a dual protection mechanism with A+6 level leakage protection and electronic lock linkage control, compliant with IEC 62196-2. It integrates multiple fault diagnosis functions, covering overvoltage, undervoltage, overcurrent, overtemperature protection, plus relay adhesion, leakage, grounding and CP abnormality detection. It supports TLS encrypted data transmission and aligns with GDPR user privacy specifications, ensuring data security for commercial operation scenarios.
The device supports multiple charging modes to fit different operation demands: plug-and-charge, RFID card authentication, scheduled charging and offline billing. It comes with standard LED display, with LCD display available as an optional configuration. Orderly charging and RFID swipe start functions are also optional, allowing users to match configurations to specific project requirements.
The controller supports three network access methods — 4G, WiFi and Ethernet — to adapt to different site network conditions. For networked deployments, it supports cloud billing via card swiping or QR code scanning, smart home charging linkage, and remote start/stop via mobile app. For commercial sites, the load balancing function optimizes pile group power distribution during peak hours, improving equipment utilization and operational revenue.
Category | Parameter | Value |
Basic Parameters | Maximum power | 7kW/11kW/22kW |
Basic Parameters | Applicable scenarios | Public operation/private charging |
Electrical Input | Input voltage | 230V/400V+20%VAC |
Electrical Input | Input frequency | 45-65 Hz |
Electrical Input | Number of input phases | Three phase, 3P+N+PE |
Electrical Output | Output voltage | 230V/400V+20%VAC |
Electrical Output | Output current | 32A (highest) |
Electrical Output | Standby power consumption | Offline ≤ 5W; Online ≤ 10W |
Electrical Output | Electricity metering | Measurement chip |
Electrical Output | Measurement accuracy | Level 2.0 |
Interactive Features | Orderly charging | Optional |
Interactive Features | Network access | 4G/WiFI/ETH |
Interactive Features | Swipe to start | Optional |
Interactive Features | Bluetooth start | / |
Interactive Features | Display mode | LED (standard), LCD (optional) |
Start Stop & Payment | Offline pile (without LCD) | Swipe card start stop, plug and charge, scheduled charging |
Start Stop & Payment | Offline pile (with LCD) | Swipe card start stop, plug and charge, scheduled charging |
Start Stop & Payment | Networking pile | Swipe card/scan code (cloud billing), smart home charging (graffiti start stop), remote start stop APP |
System Security | Earth leakage protection | External A+DC6 |
System Security | Grounding protection | Satisfy |
System Security | Safety protection | Overvoltage/overcurrent protection, surge protection, grounding protection, over temperature protection, relay adhesion protection |
Appearance Structure | Overall dimensions | 155mm×1172mm×145mm |
Environmental Indicators | Operating Temperature | -30°C-+55°C |
Environmental Indicators | Storage temperature | -40°C-+85°C |
Environmental Indicators | Ambient humidity | ≤ 95% without condensation |
Environmental Indicators | Applicable locations | Outdoor/Indoor |
For private residential garages, the V15 controller supports Graffiti WiFi remote control and scheduled charging. It can be linked with on-site photovoltaic systems to charge vehicles during peak photovoltaic generation periods, helping users cut electricity costs. Its wide operating temperature range and outdoor-rated design support stable installation in both indoor garages and outdoor parking areas.
For commercial buildings, office parks and retail properties, the controller supports Ethernet-based group control management and time-sharing billing, and can integrate with third-party payment systems. This allows property managers to run unified charging operation management and set flexible pricing strategies. Its intelligent derating function also reduces power grid transformation costs for existing buildings.
For public charging stations and roadside charging facilities, 4G networking and dynamic load balancing help operators optimize pile group power distribution during peak hours, lifting equipment utilization and overall station revenue. The multi-layer fault detection mechanism reduces on-site maintenance frequency, and the remote O&M platform supports remote upgrades and restarts, lowering daily operation costs.
The selection depends on the actual positioning of the charging station. For residential areas, hotels and mixed-use properties, AC charging controllers are a practical choice, as they require no additional power modules and involve lower station construction costs. For highway service areas or sites serving heavy-duty vehicles, DC charging solutions are more applicable. Our team can provide targeted suggestions based on your specific project needs.
All controller buyers receive access to our remote operation and maintenance management platform. The platform supports remote device upgrades, remote restarts, historical charging order queries and battery report viewing, helping operation teams diagnose most faults without on-site visits, improving station charging availability and supporting stable business operations.
Yes. We support customized adjustments to functions, networking methods and display modules based on project requirements. You can refer to the product specification sheet in the resource section for details, or leave your contact information, and our specialist will design a tailored solution for your project.
The V15 series AC Mode 3 controller is designed in compliance with European standard EN 61851, with its electronic lock and connector design conforming to IEC 62196-2. Its data transmission and user data processing comply with GDPR privacy specifications, making it suitable for commercial operation projects across European regions.
As a core product of our smart charging division, the V15 three-phase AC Mode 3 controller undergoes strict performance validation via testing equipment from our intelligent equipment division, ensuring stable performance and consistent specifications. It fits a wide range of commercial procurement and industrial application scenarios. For bulk orders or custom project requirements, you can contact our team for detailed configuration quotes and technical support.
