This DC light board is primarily installed in DC charging piles, distributed charging terminals and charging management cabinets, working as a matching component of charging pile motherboards. It adapts to the construction demands of ground public charging stations, underground parking charging facilities and dedicated fleet charging zones. Beyond conventional scenarios, the product also supports matching with high-altitude charging equipment and low-voltage distributed charging solutions, and can be integrated with our self-developed charging pile motherboards and operation management platforms to form a complete charging system scheme. Its status display function helps on-site operators and users identify equipment status quickly, reducing operation and maintenance judgment time.
Parameter Item | Specification |
Volume | small |
Power | small |
Brightness | strong |

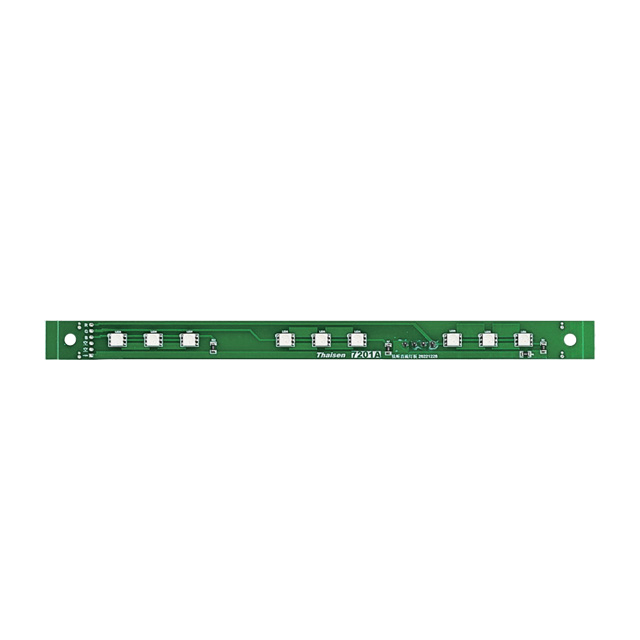

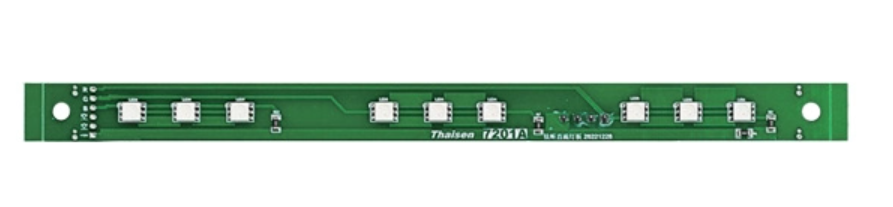

The DC light board integrates three color light beads corresponding to different operating states of the charging column. Blue light indicates idle status, green light indicates charging in progress, and red light indicates equipment fault. The indicator logic aligns with universal charging pile operation norms, allowing on-site personnel and end users to identify equipment status at a glance without additional instruction. The light display mode can be adjusted according to the control logic of the charging pile motherboard to match different system settings.
With a small volume, this DC light board supports embedded installation inside charging pile housings, and can be adapted to charging piles of different sizes and structural designs. It occupies limited internal space of the equipment, and will not affect the layout of other internal components such as motherboards and power modules. The compact structure also simplifies the installation process, reducing assembly time in batch production for charging pile manufacturers.
The product features small power consumption, which can be directly powered by the charging pile motherboard without an independent power supply module. Its low-power design will not add extra load to the charging pile control system, and maintains stable operation under the conventional power supply range of charging pile motherboards. This design helps control the overall energy consumption of the charging pile and simplifies the internal wiring design of the equipment.
The DC light board delivers strong brightness, ensuring clear visibility of status indicators under outdoor strong light and daytime environments. It adapts to open-air charging stations and semi-outdoor parking charging scenarios, maintaining recognizable display effect under different light conditions. The light source adopts a uniform light output design, avoiding local over-brightness or dim edges, and maintains consistent display performance during long-term operation.
Relying on the testing capacity of our Intelligent Equipment Division, each DC light board undergoes a full performance verification process before leaving the factory. We use dedicated charging pile testing equipment to conduct power-on test, light color accuracy test, voltage adaptation test and continuous operation test on each product, and only products that pass all test items can be delivered. All testing procedures follow unified internal production standards, and the testing equipment is calibrated regularly to ensure the accuracy of test results. For batch orders in commercial procurement, we can provide corresponding test reports according to client requirements. In addition, the product can be matched with our charging pile testing equipment for joint debugging before delivery, to ensure the matching effect with the charging control system.
For commercial procurement demands, we provide standardized batch supply services with stable delivery cycles, and support full-process order tracking. Standard products have a regular delivery cycle of 7 working days for orders under 1000 units, and the delivery schedule for large-scale orders can be negotiated and confirmed according to the actual demand of clients. For clients with personalized needs, we provide adaptation services including adjustment of indicator light logic, modification of interface definitions and customization of installation dimensions. Clients can choose to purchase the DC light board separately, or purchase it together with charging pile motherboards, charging management platforms and other products under our Smart Charging Division to obtain a complete set of system solutions. We also provide corresponding technical support during the installation and commissioning stage to assist clients in completing system integration.
This DC light board is equipped with standard wiring interfaces. It can be adapted to most mainstream charging pile motherboards on the market. We will provide complete interface definition documents and adaptation guidance for clients who purchase in batches.
Yes. The indicator light logic can be adjusted according to the control system requirements of clients, including the corresponding relation between light color and equipment status, and flashing mode settings. Customized logic requires confirmation of technical solutions before placing orders.
Yes. Relying on the testing resources of our Intelligent Equipment Division, we can provide full-item testing services for bulk orders, and issue corresponding test reports according to client requirements. We also support joint debugging testing with clients’ charging pile systems.
