Intelligent management functions: intelligent dynamic charging, APP remote start, POS function, card swiping start, fault diagnosis
Module protocol support: Youyou, Yonglian, etc
Platform protocol support: OCPP1.6/OCP2.0
Safety: Detection of overvoltage/undervoltage/overcurrent/overtemperature protection, SOC limitation/module failure/communication failure/insulation abnormality, etc
Communication and Interconnectivity: Ethernet

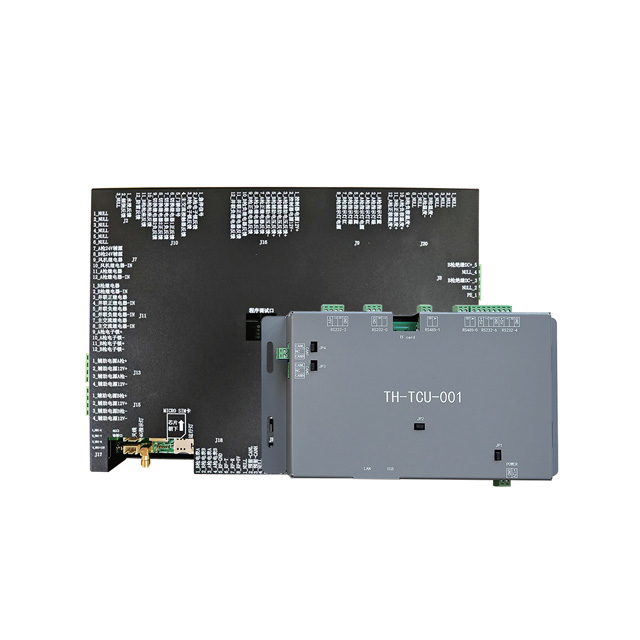

TCU DC Series | ||
Basic Parameters | power supply voltage | 12VDC(+10%) |
operating current | 0.6A | |
Performance metrics | CAN | 2 routes |
RS232 | 3 routes | |
Internet | 1 Road | |
standby power consumption | Offline ≤ 7W | |
Interactive features | network access | Ethernet |
Swipe card activation | optional | |
Display mode | LED (standard), LCD (optional) | |
Start stop and payment | Networking pile | Swipe card/scan code (cloud billing) |
Appearance structure | Overall dimensions | 200mm*125mm*40mm |
Environmental indicators | Operating Temperature | -30°C~+55°C |
Storage temperature | -40°C~+85°C | |
Ambient humidity | ≤ 95% without condensation | |
Applicable locations | Outdoor/Indoor | |
CCU DC Series | ||
Basic Parameters | power supply voltage | 12VDC(+10%) |
operating current | <2A | |
Performance metrics | voltage range | -1000VDC~+1000VDC |
Insulation range | 200VDC~1000VDC | |
CAN | 4 routes | |
Temperature detection | Route 6 | |
Interactive features | Insulation detection | 2 routes (reserved) |
Standby power consumption | Offline ≤ 15W | |
Electricity metering | Electricity meter measurement | |
Start stop and payment | Measurement accuracy | ≤ Level 1.0 |
Appearance structure | Overall dimensions | 287mm*190mm*37mm |
Environmental indicators | Operating Temperature | -30°C~+55°C |
Storage temperature | -40°C~+85°C | |
Ambient humidity | ≤ 95% without condensation | |
Applicable locations | Outdoor/Indoor | |
One stop solution for photovoltaic storage and charging
Fast charging stations
Which is better, AC charging station or DC charging station?
You can choose according to the actual situation of the station. Usually, for residential areas, hotels, and homestays, we recommend choosing slow charging stations (without the need for charging modules, the cost of building the station is lower). For areas along highways or with a lot of heavy trucks, we recommend fast charging stations. You can also leave your contact information, and we will arrange a specialist to contact you for further communication.
The device has been put into use. How to troubleshoot charging station faults on a daily basis?
You can use the Titanium Xin remote operation and maintenance management platform (which is equipped for all motherboard buyers) to achieve remote device upgrades, remote restarts, query historical charging orders, battery reports, and other functions, helping to improve the overall charging frequency of the station and increase revenue.
How can I obtain a customized product plan?
You can refer to the product specification sheet in the Resource section for details or leave your contact information, and we will arrange a specialist to customize a solution for you.
What products are currently available for Titanium Xin to choose from?
The products of the Smart Charging Division include: a series of products covering full charging standards, including national standard/European standard/American standard/Japanese standard AC mode 2 controllers, national standard/European standard/American standard/Japanese standard AC mode 3 controllers, national standard/European standard/American standard/Japanese standard DC charging controllers, high-voltage DC insulation detection modules, intelligent diagnostic operation and maintenance platforms, mini program apps and other leading charging products;
The products of the Intelligent Equipment Division include: AC/DC charging pile production line, photovoltaic inverter energy storage testing equipment, AC/DC charging pile testing equipment, electric vehicle battery quality testing equipment, charging gun/socket and connector testing bench, etc. All equipment products can adapt to international mainstream standards such as national standards, European standards, American standards, Japanese standards, etc;
