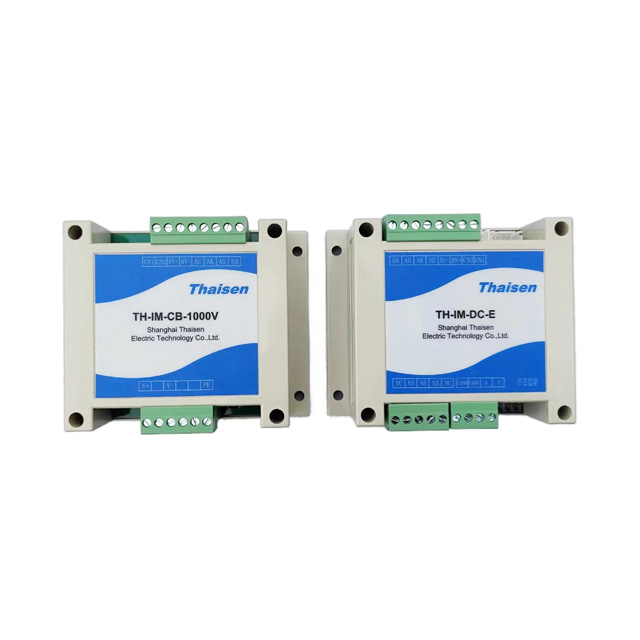

Insulation Monitoring Module (European And American Standard)
Insulation Monitoring Module (European And American Standard) Insulation Monitoring Module (European And American Standard)

loading

Insulation Monitoring Module (European And American Standard)

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

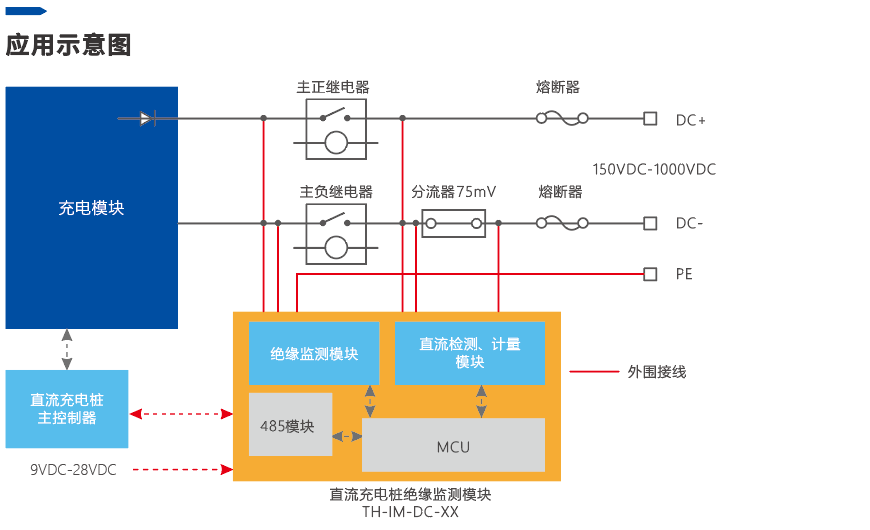

The insulation monitoring module is widely used in DC floating ground power supply systems, in DC charging piles and energy storage systems, to measure the insulation resistance of the positive and negative poles of the DC bus to ground. The effective voltage range for insulation monitoring is 150VDC~1000VDC, and the measurement range for insulation resistance is 0 Ω~1.5M Ω This module adopts the testing principle of combining balanced bridge and unbalanced bridge, which can be switched arbitrarily through instructions to meet various working conditions. Users can exchange data with this module through the RS485 interface, and some models have alarm relay output function. Specially designed for the application environment of DC charging piles, DC voltage and current measurement functions are used for charging monitoring and battery back pressure detection.
Availability:
Quantity:

Starting product: This product is the first product of Titanium Xin Technology after its establishment, with excellent stability and compatibility. After long-term market testing, its quality is trustworthy.

• Through CE certification, safe and reliable

• Specially designed for insulation monitoring of charging stations, modular structure

• Support multiple testing principles and adapt to various working conditions

• RS485 communication, some models with alarm input

• Capable of measuring voltage and current, suitable for charging monitoring and reverse voltage detection


Which is better, AC charging station or DC charging station?

You can choose according to the actual situation of the station. Usually, for residential areas, hotels, and homestays, we recommend choosing slow charging stations (without the need for charging modules, the cost of building the station is lower). For areas along highways or with a lot of heavy trucks, we recommend fast charging stations. You can also leave your contact information, and we will arrange a specialist to contact you for further communication.

The device has been put into use. How to troubleshoot charging station faults on a daily basis?

You can use the Titanium Xin remote operation and maintenance management platform (which is equipped for all motherboard buyers) to achieve remote device upgrades, remote restarts, query historical charging orders, battery reports, and other functions, helping to improve the overall charging frequency of the station and increase revenue.

How can I obtain a customized product plan?

You can refer to the product specification sheet in the Resource section for details or leave your contact information, and we will arrange a specialist to customize a solution for you.

What products are currently available for Titanium Xin to choose from?

The products of the Smart Charging Division include: a series of products covering full charging standards, including national standard/European standard/American standard/Japanese standard AC mode 2 controllers, national standard/European standard/American standard/Japanese standard AC mode 3 controllers, national standard/European standard/American standard/Japanese standard DC charging controllers, high-voltage DC insulation detection modules, intelligent diagnostic operation and maintenance platforms, mini program apps and other leading charging products;

The products of the Intelligent Equipment Division include: AC/DC charging pile production line, photovoltaic inverter energy storage testing equipment, AC/DC charging pile testing equipment, electric vehicle battery quality testing equipment, charging gun/socket and connector testing bench, etc. All equipment products can adapt to international mainstream standards such as national standards, European standards, American standards, Japanese standards, etc;
